Introducing multistage centrifugal pump + the best purchase price
Single-stage centrifugal pumps can be broken down into two distinct groups, single-stage centrifugal pumps, and multi-stage centrifugal pumps, depending on the drivers and their price
Because of their straightforward and simple design, centrifugal pumps have become the most popular and commonly utilized type of pump
Multistage centrifugal pumps are used to provide a flexible range of flow and head along with a relatively high degree of energy efficiency, making them the ideal choice for many applications
Single-stage pumps have a single impeller and are best used in high-flow, low-horsepower installations
Alternatively, multistage centrifugal pumps are used to provide high flow at low horsepower
In recent years, the most popular type of pump that has multiple liquid chambers or stages connected in series is known as a multistage pump
These pumps can have as many as six stages

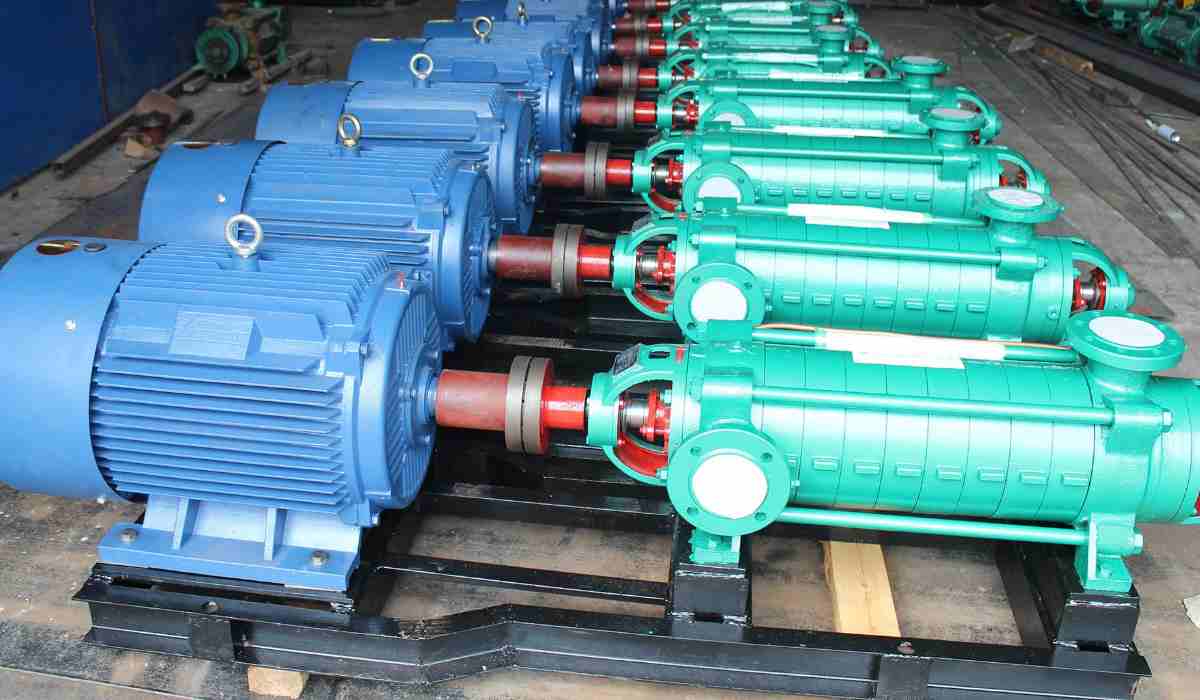

There are a few distinct varieties of multistage pumps, the most common of which are the horizontal shaft and vertical shaft models
There are a variety of uses for multistage pumps in the industrial, commercial, and residential spheres
Water delivery, high-pressure shower systems, industrial pressure boosting for boiling water, water treatment, irrigation, construction, transportation fluids, and small power plants are some of the applications that make use of multistage centrifugal pumps

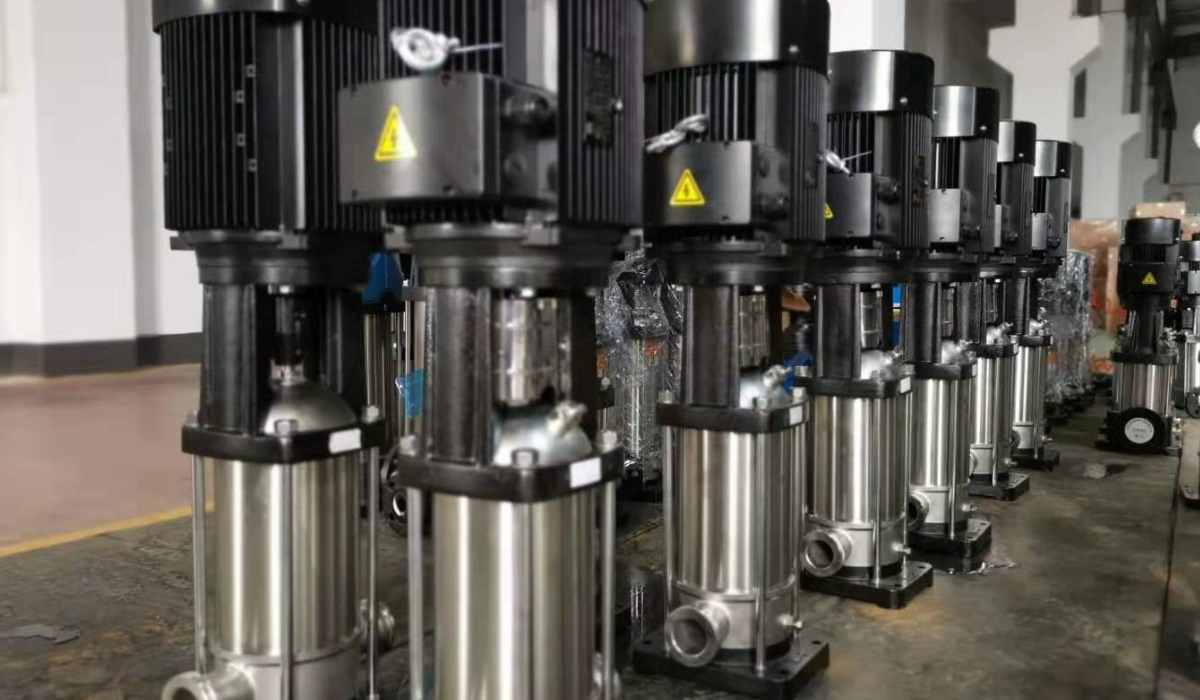

Both vertical and horizontal configurations of multistage centrifugal pumps are available, and each has its own set of defining characteristics
A single impeller pump is typically more expensive than a high-pressure multistage centrifugal pump that is housed in the same housing
These types of pumps are used on the shaft
There are a number of advantages connected with the use of multistage pumps, including cost reductions related to energy consumption and the capability to function in a wide range of head conditions
Crompton’s modern, inventive and unique multistage pumps are likely to deliver great service
Pumping fluid through two or more impellers that are connected in series is accomplished with the use of multistage pumps
These pumps contain a number of stages or liquid chambers that are connected in series
Each stage consists of the impeller, the diffuser assembly, and the return guide vanes, all of which are located in the same stage housing
On the other hand, when there is a demand for high capacity, the rotors are connected in parallel
The multistage architecture of the pump makes it possible for liquid to move in a linear direction across the many chambers
Because of the impellers, a multistage centrifugal pump generates a significant amount of thrust
Thus, the pump will have a thrust balancing device, which may take the form of a balancing cylinder or a balancing disc, and its purpose is to bring the thrust down to an acceptable level
There are channels within the pump function that are a part of the pump structure
These channels lead the discharge from one impeller to suck up the other
Multistage Pump Price
Multistage pumps are particularly efficient pumps because they have two or more impellers
They have a higher price because of their ability, these impellers can be installed on the same shaft or on various shafts in a multistage centrifugal pump, and they can be stacked on the same shaft
Multistage pumps can have two or more stages
When using a multistage pump, the liquid is directed to the impeller by way of an inlet, which is then driven by a motor or motor
The cycle of the impeller is helpful in producing centrifugal force, which assists in pushing fluid away from the outer edge of the impeller blade and toward the staged diff user unit
This process continues until each stage has been completed, and the broadcaster is responsible for directing the other subject’s gaze
After that, it is ultimately directed toward the ultimate diff user, after which it is discharged from the pump
The pressure of the discharge increases with each subsequent stage until all of the liquid has been removed

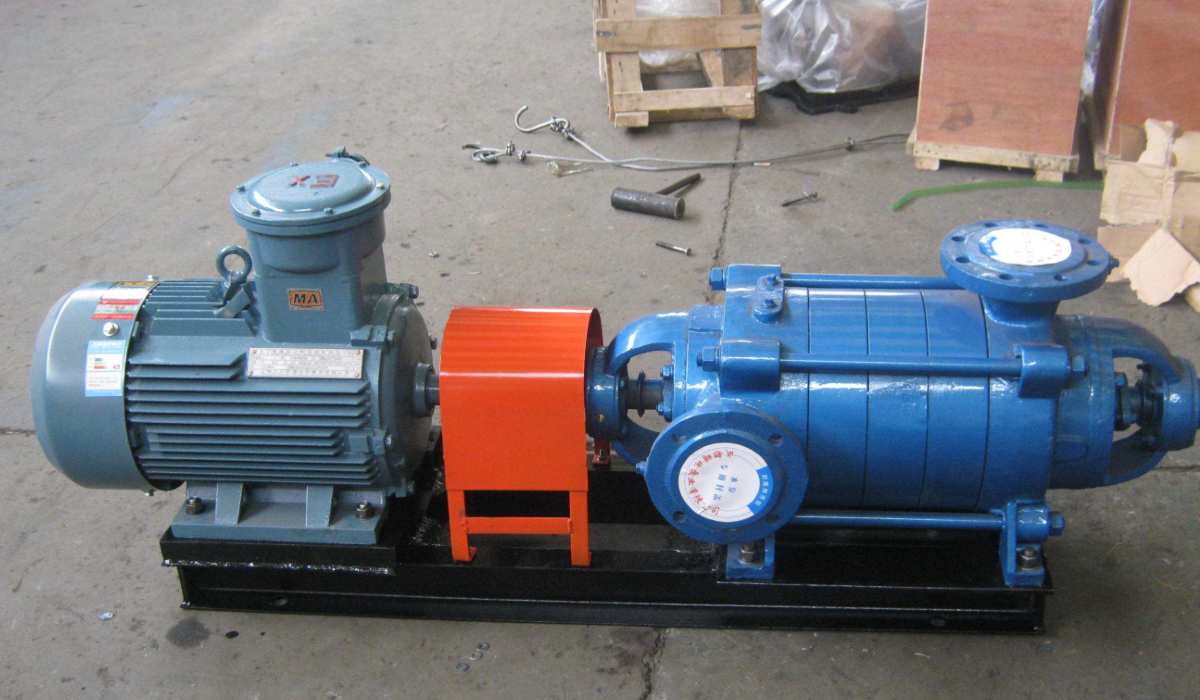

To put it in more layman’s terms, fluid enters the horizontal multistage pump or the vertical centrifugal pump, and then it moves through the several impellers in the pumps in an order that goes from left to right
In a centrifugal pump with a single stage, there is only one impeller used, but in a pump with many stages, there might be two or more impellers
Diffusers are additional components that must be included in a multistage pump in order for the fluid to be directed from the first stage to the subsequent stage
In addition to that, they have a thrust balance device, as well as intermediate bearings, with which they can investigate shafts and other small distinctions
The way in which the motors of single-stage and multi-stage centrifugal pumps affect performance is one of the key distinctions between the two types of pumps
The defining characteristic of the pump has an effect on the pump’s performance in terms of pressure, efficiency, and capacity
When looking to purchase pumps of this kind, it is vital to consider the possibility of going with any one of the available options, based on the nature of the task being performed
Features and specifications of multistage pumps are mentioned in the list below:
Because multistage pumps have many impellers, they are able to sequentially raise the pressure of the water flow
Because the head per stage is lower, relatively smaller impellers can be used while still maintaining good tolerances, which helps to lower leakage losses
It helps reduce the amount of floor space needed
Additionally, the efficiency and performance of these pumps are improved as a result of the reduced amount of engine power required to operate them
The noise level of the single-stage pump can be reduced by increasing the number of stages in the pump
In order to get the highest possible performance, the Crompton multistage pump will be rated at either 0
5-1
5 kW or 0
75-2 kW
The tube is 32 mm on a side and can be adjusted across a range of 9 to 23 stages
