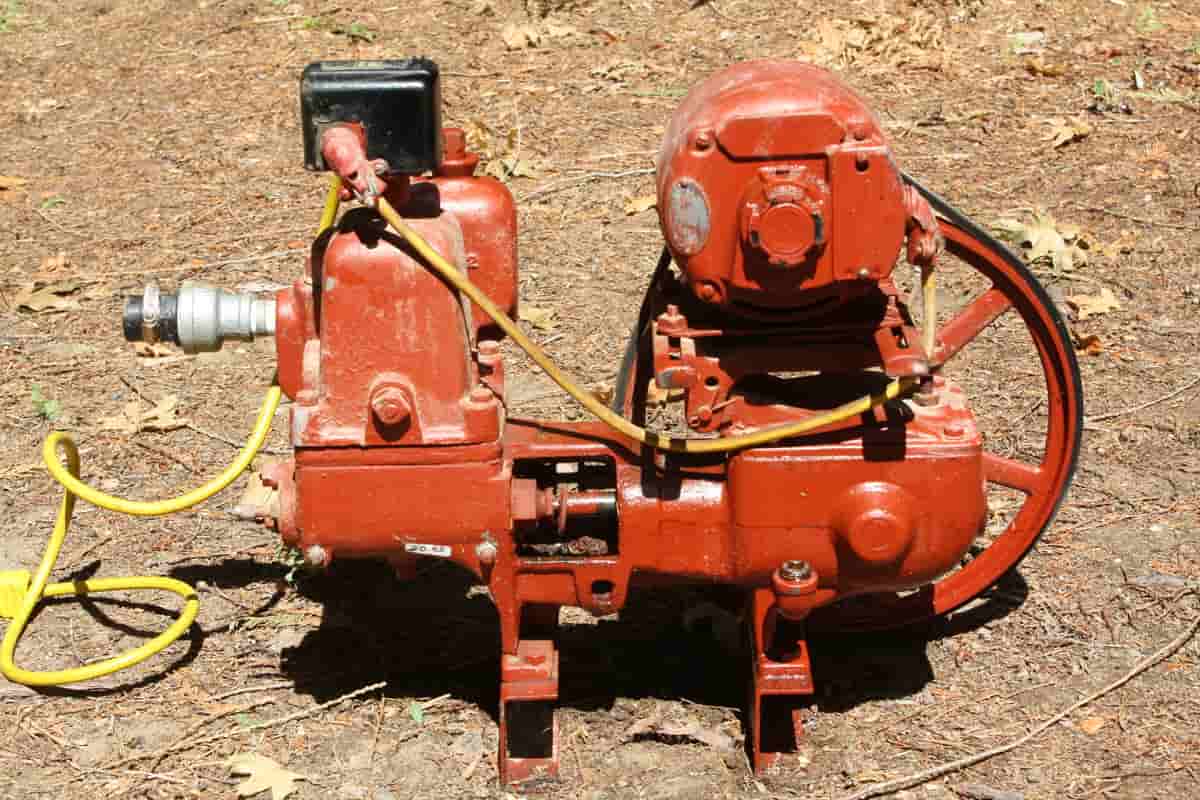

Price and purchase of Well Water Piston Pump + Cheap sale
The type of well pump you employ determines how a pressure washer operates
Plunger water pumps and piston pumps are the two primary varieties of high pressure washer pumps for sale
Selecting the pressure washer model that is best for you can be aided by being aware of the similarities and differences between the two
Similarities Plunger versus piston pumps Pumps with pistons operate similarly to piston pumps
They are all reciprocating displacement pumps that compress water before releasing it through a one-way outlet valve after being drawn in by a one-way inlet valve
There are often two or three pistons in pressure washer machines
For the double pump to deliver the same flow as the triple pump, it must operate harder and faster
Dual pumps hence tend to degrade more quickly
How piston pumps operate A reciprocating piston with seals inside a cylinder is the basis of a piston pump
The piston is forced to move up and down the cylinder by a rotor to which it is attached
The intake valve is used to bring water into the cylinder as the piston moves up and down
The water is forced through the exit valve when the piston is forced back through the cylinder
A seal that moves in concert with the piston is attached to it
Because of this, piston pumps frequently wear down and are unable to produce high pressures
Therefore, piston pump pressure washers work best when used at home to clean siding, fences, and automobiles
How do plunger pumps function? The piston is freely mounted in the cylinder as opposed to the piston, which is securely mounted
In the cylinder, positive and negative water pressure are produced when the piston rises and falls
Through the intake valve, water is sucked in, and through the outlet valve, it is expelled
The seal has been repaired, enabling the plunger pump to produce pressures that are higher than those of the piston pump
For high pressure industrial applications like graffiti removal and washing or cleaning large industrial vehicles, plunger pumps are appropriate
Piston Water Pump for Sale
Powerful water pump to operate and simple for sale is a piston pump
A chamber, a piston, and two controls make up these pumps
These pumps function by lowering the volume of the medium inside the hand pump by flowing down the chamber
The decreased medium can be released through the open outlet valve if the air pressure of the open valve spring is surpassed
In order to employ suction to draw in more pressure medium, the piston must be drawn back, which opens the intake valve and closes the outlet valve
An overview of the kinds, applications, and operation of piston pumps is given in this article
A piston pump is what? Positive displacement pumps include piston pumps
These pumps distribute fluids using pistons, diaphragms, or pistons
Check valves are used as the input and output valves on these pumps
The piston is driven by a revolving wheel or shaft in a conventional piston pump, which is a rotary device
From its center, the rotating component can be attached to a shaft, and the shaft can be connected to the piston
The shaft and the piston are turned downward to pull it back when the rotating component twists
Operation of a Piston Pump PD pumps function similarly to piston pumps because it uses a strong pumping mechanism to raise the liquid’s volume
These pumps have the ability to use power
These pumps have a number of pistons and a control panel
Two controllers and two pistons are used in dual pumps
Similar to this, a triplex pump has three controls and three pistons
To verify that the fluid is flowing in the same direction on both sides, it is crucial to double-check the controls
Both single-acting and double-acting pumps are used here
Two sets of controls and fluids are used in double-acting pumps on both ends
By flowing from one direction to the other, the pump is able to finish its pumping cycle
The piston runs out in the opposite direction when it advances in one direction
For the pump to complete a cycle, a single-acting version must flow in both directions
Piston Pump Types Lift pumps, forced pumps, axial pumps, and radial piston pumps are the various forms of these pumps
The lift pump and the forced pump can be controlled manually; the other pumps must be powered by a motor
Lift for piston pumps With the use of a control mechanism known as a valve at the bottom of the cylinder, a piston above the stroke can draw fluid in with the help of this kind of pump
The fluid enters the upper portion of the cylinder through the control mechanism built into the piston during the down stroke
The fluid can then be discharged through the nozzle from the top of the cylinder during the upstroke
Power strut In this kind of pump, an input valve allows a piston pump to draw fluid into a cylinder (tube)
The outlet valve allows the liquid level to be discharged into the outlet pipe at the top of the bottom stroke
Axial-piston engine This is a positive displacement (PD) pump with several pistons housed inside a ring-shaped tube block assembly
When the block is pushed, an important axis related to the pumping piston will revolve across the axis of symmetry
These pumps can be utilized as hydraulic actuators, split pumps, or air conditioning compressors
Pump with radial pistons The pump is a hydraulic device that differs from an axial piston pump in that the working piston is stretched in a symmetric radial orbit near the shaft
Customize When selecting these pumps, the most important specifications to consider are flow, pump head, stroke volume, pressure, outlet diameter, power rating, horsepower, and operating temperature
Material The piston pump’s design materials are mostly influenced by the pump’s intended purpose
The housing and cylinder materials must be strong enough to endure operation conditions in the surrounding environment
The material must be able to withstand any rust that the fluid can create while it is in contact with the pumping medium
Here we’ll talk about some of the materials that went into making this pump
In comparison to materials with higher strength ratings, cast iron has higher tensile strength, durability, and abrasion resistance
Plastics are reasonably priced and offer strong defense against chemical and rust assault
Compared to plastics, stainless steel and stainless steel alloys have greater tensile capabilities, which translates to superior compression rates
They are also chemical and chemical resistant
Nickel, copper, bronze, ceramics, and aluminum alloys are the main other materials used in pump design
Features These are the key benefits of piston pumps
Wide range of pressure Control of energy without moving traffic
Pressure and flow rate had negligible influence on behavior
With a suitable control device design, it is effective at stirring up thick liquids, slurries, and abrasive materials
Flaw The following are the primary drawbacks of piston pumps
High operating and maintenance costs, frequently big and unwieldy They only manage pulsed flows of less traffic
Therefore, piston pumps, which are utilized similarly to hydraulic pumps to power both large and small gear, are crucial
Piston pumps are primarily used for conveying paint, cake, chocolate, etc
For industrial application, these tubes have grown in size
Advanced industrial applications also make use of all radial and axial piston pumps, including those with numerous pistons placed in a circular cylinder block
Piston Water Pump
A positive displacement water pump known as a piston pump involves a piston and a high pressure seal
Liquids or compressed gases can be transported using piston pumps
It can function in a large pressure range
It is possible to operate at high pressure without negatively affecting flow
Viscous media and media containing solid particles can both be handled by piston pumps
This kind of pump works by filling the pump chamber, an oscillating mechanism where the down stroke alters the pressure, and a piston cup (the upstroke pushes the pump fluid out for use)
Piston pumps are frequently employed in irrigation or water supply systems, as well as situations that call for a high, stable pressure
Lift pumps and forced pumps are the two primary varieties of piston pumps
Both can be run manually or with a motor
Raise pump In a lift pump, water is drawn into the bottom of the cylinder by the piston moving via a valve
Through a valve positioned in the piston, water enters the top portion of the cylinder on the lower stroke
The water is ejected from the top of the cylinder through the spout on the subsequent upstroke
The maximum water depth at which the air pressure can withstand the vacuum is the limit of this sort of pump
Power strut In a power pump, the water inlet valve is pushed open by the piston as it moves water into the cylinder
Water enters the exit pipe through the outlet valve during the down stroke
A positive displacement pump with several pistons arranged in a circle in a cylinder is known as an axial piston pump
Suitable for use as a hydraulic motor, standalone pump, or compressor for car air conditioning
Multiple pistons (often an odd number) are stacked in a circular array inside an enclosure known as an axial piston pump’s rotor, cylinder, or barrel
An integrated shaft that is roughly parallel to the pumping piston and more or less aligned (but not always) with its axis of symmetry turns the cylinder
Connecting surface The convex end of the cylinder body wears on the fixed valve plate’s mating surface
Fluids from the pump’s input and outflow pass through various sections of the sliding contact between the valve plate and the cylinder block
Two semicircular openings on the valve plate allow the working fluid to enter and exit, respectively
Well-known printing press The opposite end of the cylinder block has a pumping piston sticking out of it
The exposed end of the piston can be set up in a variety of ways, but they always include a cam
The movable cams in variable displacement units are sometimes known as switch plates, yokes, or ties
For conceptual reasons, a cam can be symbolized by a plane that indicates its orientation
When paired with shaft rotation, the cam’s movement causes the pistons to swap places and thereby pumps
One of the factors that affects the pump displacement, or the volume of fluid pumped per rotation axis, is the cam angle, which is the angle formed by the normal vector of the cam plane and the axis of rotation of the cylinder block
Fixed shift units are unable to adjust the camera angle while they are in operation, however variable shift units can
Rotational piston As the cylinder block rotates, the exposed end of the piston is forced to follow the cam plane surface
The piston must spin axially as it moves about the axis of the cylinder block because the camber plane is at an angle to the axis of rotation
The piston moves in an axial direction sinusoidal
The piston advances toward the valve plate during the rising phase of the piston exchange cycle
Additionally, during this period, the liquid that has been trapped between the piston’s buried end and the valve plate is released into the pump’s discharge port via one of the valve plate’s semicircular discharge openings
Fluid is forced or transported through the valve plate’s discharge port as the piston advances in the direction of the valve plate
Lead impact The connection between the trapped fluid chamber and the pump’s discharge port is closed when the piston is at the top of the reciprocating cycle (often referred to as top dead center or simply top dead center)
The pump inlet was soon after opened in the same chamber
The trapped bore gets bigger as the piston keeps rotating around the cylinder’s axis and moves farther away from the valve plate
When this occurs, fluid from the pump’s input enters the chamber to fill the vacuum
This process continues until the piston touches the bottom dead center, or BDC, of the reciprocating cylinder
The connection between the inlet and the pump chamber is sealed in a BDC
Shortly after, the discharge port in the chamber reopens, and the pumping cycle continues
Fluctuating displacement If the vertical vector in a variable displacement pump is set at the cam’s (swash plate) level and parallel to the axis of rotation, the piston in the cylinder won’t move
There is no output as a result
Pump output is adjusted by moving the swashplate from zero to maximum
Axial piston pumps with direct displacement control and direct displacement control pumps are the two different forms of variable displacement axial piston pumps
An axial piston pump’s plate serves as the mechanical rod for direct displacement control
Direct displacement control is only appropriate for low or medium duty pumps since higher system pressures demand greater force to move this lever
Servo control is required for heavy duty pumps
Displacement direct control pumps contain connecting rods, springs, and, in some circumstances, a magnet in place of the motor shaft outside the pump (thus reducing the number of moving parts)
This decreases resistance to fluid flow by keeping the parts protected and lubricated
Pump with servo control
The valve-actuated switch plate angle is often changed in a pressure-compensated pump using pressure feedback to ensure that the pump’s instantaneous output flow is adequate to maintain the desired pressure
The pressure will momentarily drop as the load flow increases, but the pressure compensation valve will sense the drop and change the switch plate’s angle to raise the output flow of the pump, so restoring the appropriate pressure
In reality, the majority of systems regulate these pumps using pressure
For instance, when the switch plate is pushed towards a zero angle when the working pressure is up to 200 bar, the leakage present in the system enables the pump to stabilize as long as the desired pressure is maintained
If demand falls, pressure rises and pumping volume falls as pressure rises; if demand rises, the swashplate advances to a larger angle, the piston stroke lengthens, and the volume of liquid increases
The output is nearly zero once more at the highest system pressure
The system pressure will drop to almost nil if the fluid demand exceeds the pump’s delivery capability
The piston will operate on a full stroke, and the swashplate’s angle will remain at its highest permissible setting
This situation persists until the pump’s capacity surpasses the demand and the system flow demand decreases
The switch plate’s angle is altered as the pressure rises in order to meet the flow need without going above the maximum pressure
