Top End Suction Centrifugal Pump + resonable price
There is a good chance to explain the meaning of an end-suction water pump that will have the lowest starting cost for the majority of applications, while still providing a respectable amount of efficiency
However, none of the criteria are satisfied by centrifugal pumps in any way, shape, or form, most notably in terms of bearing life, sealing casings, or dimensional interchangeability
In addition to this, they are frequently made out of the least expensive materials, such as cast iron for the housing and bronze or brass for the impellers
The impellers have a conventionally closed structure, and neither the casing nor the impeller wear rings are removable or interchangeable
In addition, it is generally for this kind of pump to have a larger margin of error in relation to the performance that has been reported, such as the efficiency
It’s possible that these pumps are the best option for non-critical applications that require intermittent duty
However, the cost of maintenance and downtime can end up being more expensive than the initial cost reduction for applications that are mission-critical and call for a lengthy lifespan there is a wide number of design options and construction materials available for chemical pumps
These pumps are able to process corrosive and/or poisonous liquids and slurries
The materials of construction used in pumps for this industry are different from those used in pumps for other industries, and there are also a variety of different mechanical shaft seal designs that can be used
Additionally, in order for these pumps to be considered compliant with ANSI B73 requirements, they need to be dimensionally interchangeable, have a minimum bearing life, and fulfill a variety of other quality specifications
Ductile iron is the very minimum required case material, but stainless steel is by far the most popular
The adjustable open impeller that is part of the modular architecture is excellent at regulating the air that is trapped inside
Users who are concerned about reliability are more likely to choose the ANSI/ASME B-73 pump over a cheaper water pump for other crucial applications like water utilities
This is because the ANSI/ASME B-73 pump comes equipped with a number of advantageous characteristics
Despite the fact that this particular type of frame-mounted cantilever pump was primarily developed to handle paper (up to 6%), it is also utilized to handle bigger capacities of important water pumping and chemical applications
These pumps, which are designed to handle abrasive paper materials and submerged air, often include adjustable open impellers that are equipped with replacement wear plates
In most cases, the construction is made out of stainless steel grade 316 or duplex stainless steel
The plateau in this flow range
Although many pump customers are probably seeking double-suction, rack, and pinion pumps, this end-suction pump alternative is also a candidate for water service flow rates beyond 3,000 to 5,000 gallons per minute
End Suction Pump Meaning
There are two meanings for varieties of end-suction pumps: a slide pump, in which the pump has its own set of bearings and coupling that separates the pump and motor; and a one-piece pump, in which the pump impeller is connected directly to the shaft without a separate coupling that sits in between them
Both of these variations are known as end-suction pumps
End-suction pumps are utilized in a wide variety of commercial, industrial, and even domestic applications across the globe
Because so many different pump vendors stock them, you can typically find them at prices that are more affordable than the competition
Water pumps that are considered standard are often built of iron or plastic and come as a single unit

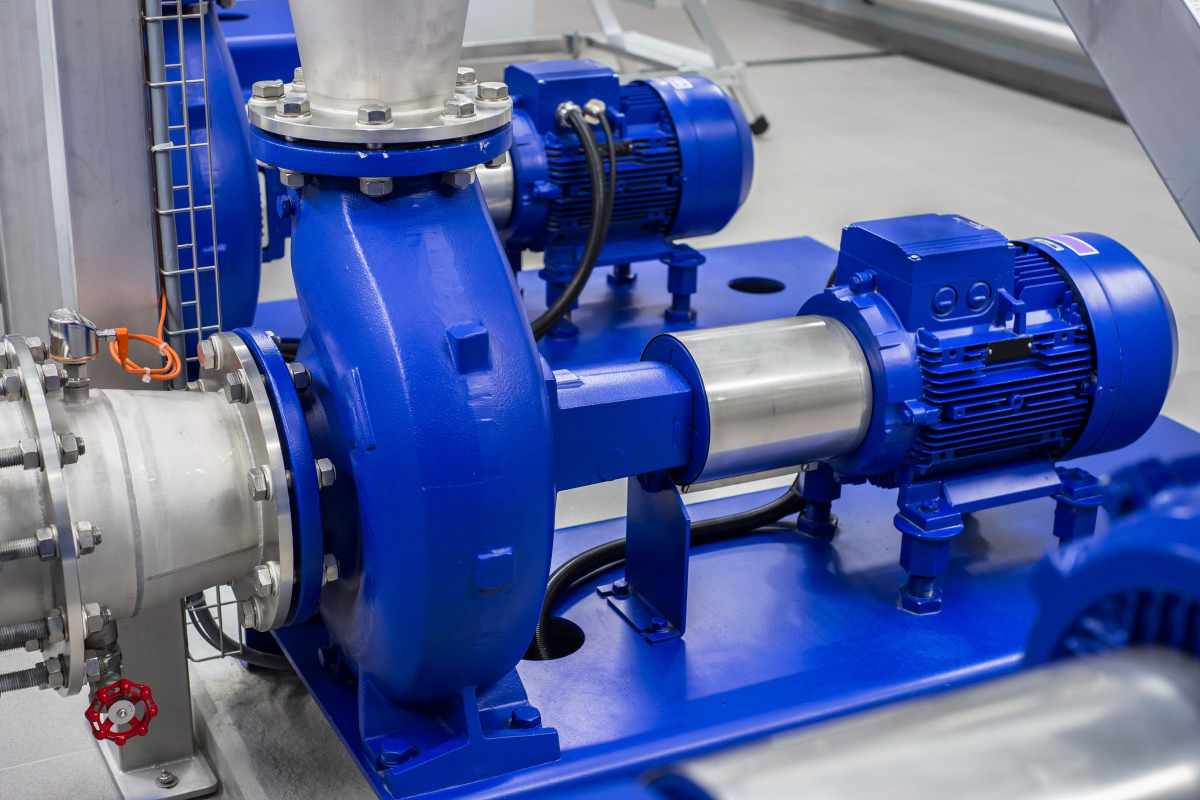

Certain heavy-duty industrial applications require end suction pumps to be installed on a base plate with a coupling that separates the pump and the motor
These applications include: They are often fabricated from corrosion-resistant materials such as stainless steel, exotic alloys, or corrosion-resistant plastics

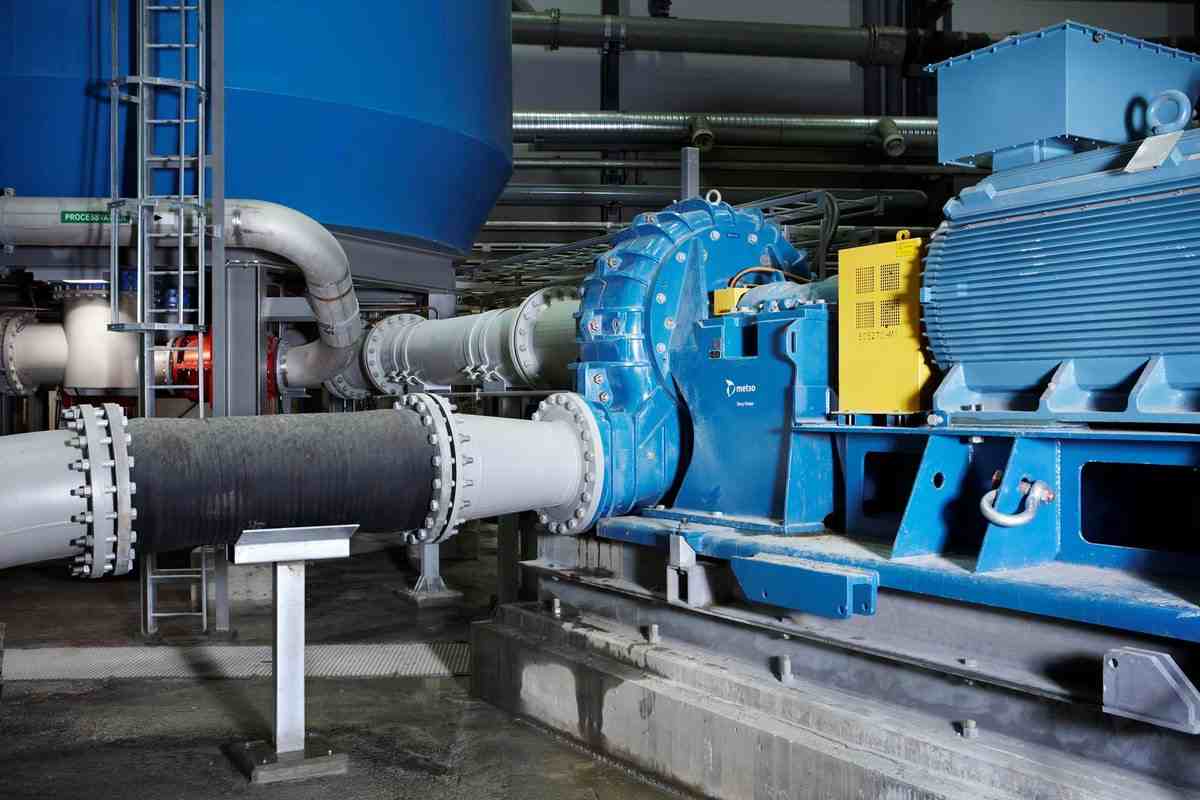

Options made of hardened iron work exceptionally well in slurry environments, such as those found in mineral processing, mining, and dredging
End suction pumps are versatile enough to be employed in a variety of industries, including the food and chemical industries, when equipped with open impellers to handle the possibility of particles
In order to provide relatively clean oil and water services, the closed turbine option will be utilized
In a number of different ways, the pump shaft can be separated from its surrounding environment
The casing and impeller of an end-suction pump typically take the form of a helix
They function properly when the fluid being pumped picks up speed as it flows along the vanes of the impeller
After reaching the helical shell, the fluid then undergoes a process known as diffusion, which transforms its high velocity into a higher pressure
The vast majority are powered by an AC electric motor, although there are also pumps that are powered by DC motors
There are also other possibilities available, such as gasoline engines, diesel engines, steam turbines, and hydraulic motors
Centrifugal Pump Meaning
The meaning of centrifugal pumps is, that pumps that employ centrifugal force to move fluids from one location to another by transforming rotating kinetic energy into the energy of the fluid flow
In most cases, rotational power is provided by either an electric motor or a steam turbine (in the case of turbine-powered feedwater pumps)
When it comes to industrial applications, centrifugal pumps are far and away the most common type of pump employed
The screw pump is one of the most prevalent types of centrifugal pumps
The fluid enters a screw pump in an axial direction through the eye of the impeller, which is a low-pressure area and rotates at a high speed
The entering fluid receives momentum from the rotating impeller and blades as they go through the pump
Due to pump chasing, the fluid moves at an increasing pace outward in a radial direction
At the same time, a vacuum is developed in the impeller eye, which draws continuously more fluid into the pump
The kinetic energy of the fluid goes up in direct proportion to the speed at which it is moving
The high kinetic energy fluid is forced out of the impeller area and into the flute as it travels through the device
According to Bernoulli’s principle, kinetic energy is transformed into fluid pressure when the fluid moves through a flute with an increasing cross-section
This occurs as the fluid moves through the flute
Although backward curvature is the most common form of blade design for turbines, radial and forward curvature can be utilized
The outlet pressure shifts subtly in response to the different designs that are implemented
The blades have the ability to either open or close
In addition to this, the diffuser may be fitted with fixed vanes, which function to assist in directing the flow towards the output
The speed at which the wheel spins is directly proportional to the amount of energy that is transferred to the fluid
The faster the wheel spins and the larger the size of the wheel, the faster it spins
The rotational kinetic energy of the impeller is converted into the hydrodynamic energy of fluid flow by centrifugal pumps, which are used to move fluids
The power required to rotate an object often comes from a motor or an electric motor
axial dynamic action absorption Turbomachines fall under this subcategory of turbomachines
Fluid enters the pump impeller ahead or near the axis of rotation, is accelerated by the impeller, and then flows radially outward into a diffuser or helical chamber (housing) from where it spews
This process is repeated until the fluid exits the pump
Typical applications include the pumping of water, sewage, agricultural products, petroleum, and petrochemicals
The high flow capabilities, compatibility with abrasive solutions, mixability, and comparatively simple geometry of centrifugal pumps are frequently what sway consumers to select these types of pumps over others
